import matplotlib.pyplot could not be resolved from source

I still remember the first time I saw that annoying yellow squiggly line under my Matplotlib import.

It was late on a Tuesday, and I was trying to wrap up a data visualization for a local housing market report in Chicago.

Everything looked correct, but VS Code insisted that it couldn’t find the source for matplotlib.pyplot.

After years of building Python dashboards, I’ve learned that this error usually isn’t about your code, it’s about your environment.

In this tutorial, I’ll show you exactly how to fix the “matplotlib.pyplot could not be resolved from source” error using the methods that work for me every time.

Table of Contents

Why Does This Error Happen?

This error typically pops up in Visual Studio Code when using the Pylance language server.

It happens because Pylance can’t find the library files in the Python interpreter you’ve currently selected.

Usually, it’s either because Matplotlib isn’t installed or you’re using a virtual environment that VS Code hasn’t recognized yet.

Method 1: Select the Right Python Interpreter

This is the most common fix I use when my imports aren’t resolving correctly.

Sometimes VS Code defaults to a global Python installation instead of the specific environment where you installed your libraries.

Here is how you can switch it:

Press Ctrl + Shift + P (or Cmd + Shift + P on Mac) to open the Command Palette.
Type “Python: Select Interpreter” and select it.
Choose the version of Python that has Matplotlib installed (look for the one labeled “venv” or “conda” if you are using a virtual environment).

Once I select the correct environment, the yellow warning usually disappears within a few seconds.

Method 2: Install Matplotlib in Your Current Environment

If you’ve selected the right interpreter and the error persists, you might simply be missing the package.

I often forget to install dependencies when I start a new project for analyzing US Census data or retail trends.

Open your VS Code terminal and run the following command:

pip install matplotlib

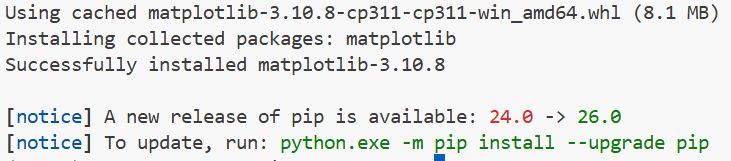

You can see the output in the screenshot below.

Fix import matplotlib.pyplot could not be resolved from source in Python

If you are using a specific version of Python, you might need to use:

python -m pip install matplotlib

After the installation finishes, give VS Code a moment to index the new files.

Method 3: Restart the Language Server or VS Code

There are times when Pylance just gets stuck and doesn’t see the new packages I’ve installed.

When this happens, I don’t waste time digging through settings; I just restart the language server.

Open the Command Palette (Ctrl + Shift + P).
Type “Python: Restart Language Server” and hit Enter.

If that doesn’t work, I simply close VS Code and reopen it. It sounds basic, but it’s a lifesaver when the editor is being stubborn.

Method 4: Check Your Workspace Settings

If you are working on a large project with multiple folders, VS Code might be looking in the wrong place for your source code.

I’ve run into this when working on Python scripts that analyze stock market data across different directories.

Make sure your extraPaths are set correctly in your .vscode/settings.json file if you have custom library locations.

Example: Plot US Tech Stock Trends

To make sure everything is working, let’s run a real-world example.

We will plot the growth of a hypothetical tech investment based in Silicon Valley to verify that Matplotlib is resolving correctly.

import matplotlib.pyplot as plt

# Data: Years and Stock Price for a US Tech Company
years = [2020, 2021, 2022, 2023, 2024, 2025]
stock_price = [150, 210, 185, 240, 310, 350]

# Create the plot
plt.figure(figsize=(10, 6))
plt.plot(years, stock_price, marker='o', linestyle='-', color='b', label='Price per Share')

# Adding labels and title specific to US Market analysis
plt.title('Stock Price Growth of a US Tech Firm (2020-2025)', fontsize=14)
plt.xlabel('Year', fontsize=12)
plt.ylabel('Stock Price (USD)', fontsize=12)
plt.grid(True, linestyle='--', alpha=0.7)
plt.legend()

# Display the plot
plt.show()

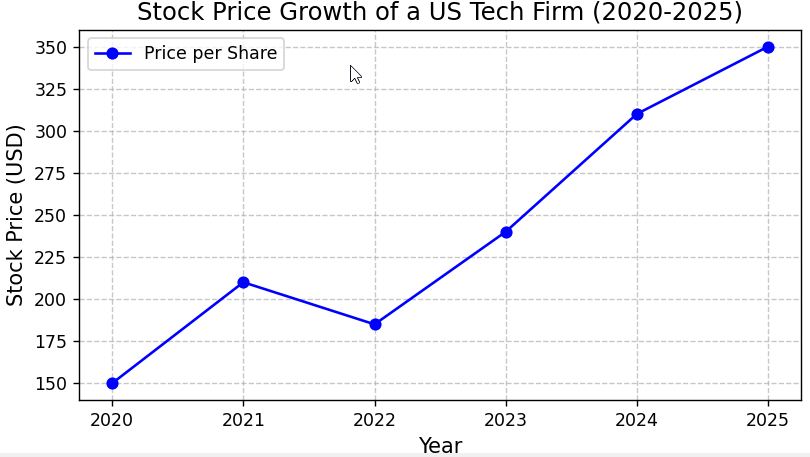

You can see the output in the screenshot below.

Fix import matplotlib.pyplot could not be resolved from source

When you run this code, you should see a clean line chart showing the stock trend.

If the chart appears without any errors in the terminal, you’ve successfully resolved the issue.

In this tutorial, I showed you how to fix the “import matplotlib.pyplot could not be resolved from source” error in VS Code.

I’ve found that most of the time, simply selecting the correct interpreter or doing a quick pip install does the trick.
