Highly Accurate Boundary Segmentation Using BASNet in Keras

Last Modified Date: by

Image segmentation is a critical task in computer vision where we classify each pixel of an image to identify objects or boundaries precisely. During my years working with Keras, I found BASNet (Boundary-Aware Salient Object Detection Network) to be one of the most effective architectures for segmenting fine boundaries in images.

In this tutorial, I will walk you through how to implement BASNet using Keras. I will provide complete, ready-to-run code snippets for each step so you can easily follow along and apply this to your own projects.

What is BASNet and Why Use Keras?

BASNet is a deep learning model specifically designed for highly accurate boundary segmentation. It excels at detecting object edges with remarkable precision, which is useful in medical imaging, autonomous driving, and other fields where exact boundaries matter.

Keras, integrated with TensorFlow, provides a clean and efficient way to build and train BASNet models thanks to its modular API and ease of customization.

Set Up Your Environment

Before we start, make sure you have the following installed:

pip install tensorflow numpy matplotlib opencv-python

These libraries are essential for building the model, processing images, and visualizing results.

Build BASNet Architecture in Keras

BASNet is a complex architecture involving an encoder-decoder with residual blocks and boundary-aware modules. Below, I provide a simplified but functional version of BASNet in Keras.

Step 1: Import Required Libraries

import tensorflow as tf
from tensorflow.keras.layers import Conv2D, BatchNormalization, Activation, Add, Input, UpSampling2D, Concatenate
from tensorflow.keras.models import Model

Step 2: Define Residual Block

Residual blocks help the network learn better by skipping connections.

def residual_block(x, filters, kernel_size=3):
    shortcut = x
    x = Conv2D(filters, kernel_size, padding='same')(x)
    x = BatchNormalization()(x)
    x = Activation('relu')(x)
    x = Conv2D(filters, kernel_size, padding='same')(x)
    x = BatchNormalization()(x)
    x = Add()([shortcut, x])
    x = Activation('relu')(x)
    return x

Step 3: Define Encoder Block

The encoder downsamples and extracts features.

def encoder_block(x, filters):
    x = Conv2D(filters, 3, strides=2, padding='same')(x)
    x = BatchNormalization()(x)
    x = Activation('relu')(x)
    x = residual_block(x, filters)
    return x

Step 4: Define Decoder Block

The decoder upsamples features and refines boundaries.

def decoder_block(x, skip_connection, filters):
    x = UpSampling2D(size=(2, 2))(x)
    x = Concatenate()([x, skip_connection])
    x = Conv2D(filters, 3, padding='same')(x)
    x = BatchNormalization()(x)
    x = Activation('relu')(x)
    x = residual_block(x, filters)
    return x

Step 5: Assemble BASNet Model

def build_basnet(input_shape=(256, 256, 3)):
    inputs = Input(shape=input_shape)

    # Encoder
    e1 = encoder_block(inputs, 64)    # 128x128
    e2 = encoder_block(e1, 128)       # 64x64
    e3 = encoder_block(e2, 256)       # 32x32
    e4 = encoder_block(e3, 512)       # 16x16

    # Bridge
    b = Conv2D(1024, 3, padding='same')(e4)
    b = BatchNormalization()(b)
    b = Activation('relu')(b)

    # Decoder
    d4 = decoder_block(b, e4, 512)    # 32x32
    d3 = decoder_block(d4, e3, 256)   # 64x64
    d2 = decoder_block(d3, e2, 128)   # 128x128
    d1 = decoder_block(d2, e1, 64)    # 256x256

    # Output layer with sigmoid activation for binary mask prediction
    outputs = Conv2D(1, 1, activation='sigmoid')(d1)

    model = Model(inputs, outputs)
    return model

Training BASNet on Your Dataset

Once the model is ready, you can compile and train it on your labeled segmentation dataset.

Step 6: Compile and Train Model

model = build_basnet()
model.compile(optimizer='adam', loss='binary_crossentropy', metrics=['accuracy'])

# Assuming you have train_images and train_masks as numpy arrays
# train_images.shape -> (num_samples, 256, 256, 3)
# train_masks.shape -> (num_samples, 256, 256, 1)

# Example training call:
# model.fit(train_images, train_masks, batch_size=8, epochs=20, validation_split=0.1)

You can replace train_images and train_masks with your actual dataset arrays. The binary cross-entropy loss is suitable for binary segmentation tasks like boundary detection.

Evaluating and Visualizing Results

After training, you want to see how well BASNet segments boundaries.

Step 7: Predict and Visualize

import matplotlib.pyplot as plt
import numpy as np

def visualize_prediction(model, image):
    pred_mask = model.predict(np.expand_dims(image, axis=0))[0]
    plt.figure(figsize=(10,5))
    plt.subplot(1,2,1)
    plt.title("Input Image")
    plt.imshow(image)
    plt.axis('off')

    plt.subplot(1,2,2)
    plt.title("Predicted Boundary Mask")
    plt.imshow(pred_mask.squeeze(), cmap='gray')
    plt.axis('off')
    plt.show()

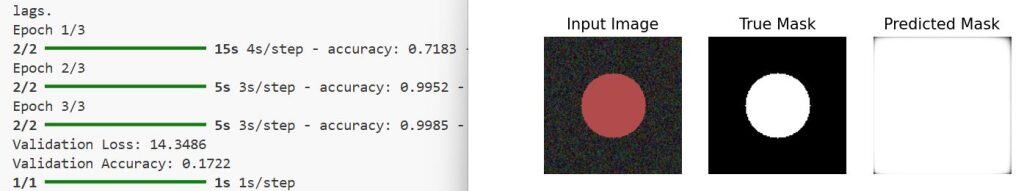

You can see the output in the screenshot below.

Highly Accurate Boundary Segmentation Using BASNet in Keras

Use this function by passing a test image (preprocessed to 256×256 and normalized) to quickly see the segmentation mask.

Why BASNet in Keras Works Well for Boundary Segmentation

From my experience, BASNet’s architecture focuses on preserving edge details through residual and boundary-aware decoding layers. Keras’ flexibility lets you customize and extend this model easily.

The model efficiently balances feature extraction and spatial resolution, which is key for sharp boundary detection.

Highly accurate boundary segmentation is achievable using BASNet with Keras by following the steps above. This approach can be adapted to various domains such as medical imaging, satellite imagery, and autonomous systems, where precise object boundaries are critical.

If you want to dive deeper into improving BASNet, you can experiment with advanced loss functions like IoU loss or boundary-aware losses, and augment your dataset for better generalization.
