Set Python Matplotlib xlim Log Scale

I have spent years building complex data visualizations in Python. One common challenge I see developers face is managing axis limits on a logarithmic scale.

Visualizing data that spans several orders of magnitude is tricky. If you use a standard linear scale, your smaller data points often disappear into a single line.

In this tutorial, I will show you exactly how to use the Python Matplotlib xlim log scale effectively. I will share the methods I use to make my charts look professional and readable.

Whether you are analyzing stock market trends or population growth across different states, mastering this technique is essential. Let’s get into the practical ways you can control your x-axis limits when using a log scale.

Table of Contents

Use a Log Scale for Your X-Axis

I often use a log scale when my data is heavily skewed. For example, if I am comparing the market caps of small USA startups to giants like Apple or Microsoft, a linear scale fails.

The smaller companies would all be bunched up near the zero mark. By using a log scale, I can see the relative growth of both small and large entities in the same view.

Setting the xlim specifically is important because Matplotlib’s default auto-scaling sometimes adds too much white space. I prefer to have tight control over the boundaries of my plots.

Method 1: Use plt.xlim() with plt.xscale()

The easy way to set limits is by using the procedural interface. This is the method I usually recommend for quick scripts or exploratory data analysis in Python.

In this example, I will plot the growth of a hypothetical USA tech investment over time. We will observe how the x-axis behaves when we force it into a log scale and define specific limits.

import matplotlib.pyplot as plt
import numpy as np

# Simulating investment growth in a USA Tech Fund over 100 months
months = np.arange(1, 101)
investment_value = 1000 * (1.05 ** months)

# I start by creating the plot
plt.figure(figsize=(10, 6))
plt.plot(months, investment_value, color='blue', linewidth=2)

# Now I apply the log scale to the x-axis
plt.xscale('log')

# I set the x-axis limits from 1 to 100
plt.xlim(1, 100)

# Adding labels and a title relevant to the USA market
plt.title('Growth of Tech Investment (Log Scale X-Axis)', fontsize=14)
plt.xlabel('Duration in Months (Log Scale)', fontsize=12)
plt.ylabel('Value in USD', fontsize=12)

plt.grid(True, which="both", ls="-", alpha=0.5)
plt.show()

I executed the above example code and added the screenshot below.

When I run this Python code, the plt.xscale(‘log’) command transforms the axis. The plt.xlim(1, 100) ensures that my data fills the entire horizontal space of the graph.

Method 2: The Object-Oriented Approach with ax.set_xlim()

As a professional developer, I prefer the object-oriented approach for more complex Python projects. It gives me better control over multiple subplots.

I use the Axes object to define the scale and the limits. This method is much cleaner when you are building dashboards or embedding plots into USA-based web applications.

import matplotlib.pyplot as plt

# Data: Annual Revenue of a growing USA E-commerce Startup (in millions)
years_active = [1, 2, 5, 10, 20, 50]
revenue = [0.5, 2, 15, 120, 800, 5000]

# I initialize the figure and axes
fig, ax = plt.subplots(figsize=(10, 6))

ax.plot(years_active, revenue, marker='o', linestyle='--', color='green')

# I set the x-axis to log scale
ax.set_xscale('log')

# I manually set the x-axis limits
# This prevents the plot from starting at 0, which is undefined on a log scale
ax.set_xlim(1, 60)

ax.set_title('Revenue Scaling of a USA Startup', fontsize=14)
ax.set_xlabel('Years of Operation (Logarithmic)', fontsize=12)
ax.set_ylabel('Revenue (Millions of USD)', fontsize=12)

ax.grid(True)
plt.show()

I executed the above example code and added the screenshot below.

I find that ax.set_xlim() is more robust. It allows me to specify the exact start and end points of the data I want to highlight without affecting other subplots in the figure.

Method 3: Handle Small Values and Zero

One thing I learned the hard way is that log scales do not like the number zero. If your xlim starts at zero, Matplotlib will often throw an error or produce a blank plot.

In Python, the logarithm of zero is undefined. When I work with the USA census data, where some counties might have near-zero growth, I always set my lower xlim slightly above zero, like 0.1 or 1.

import matplotlib.pyplot as plt

# Population density (people per sq mile) for various USA regions
regions = ['Region A', 'Region B', 'Region C', 'Region D']
density = [1.2, 45, 800, 12000]

fig, ax = plt.subplots(figsize=(10, 6))
ax.barh(regions, density, color='skyblue')

# Setting the x-axis to log scale to accommodate the wide range
ax.set_xscale('log')

# I set the x-axis limit to start at 1 to avoid log(0) issues
ax.set_xlim(1, 20000)

ax.set_title('USA Regional Population Density Comparison', fontsize=14)
ax.set_xlabel('People per Square Mile (Log Scale)', fontsize=12)

plt.show()

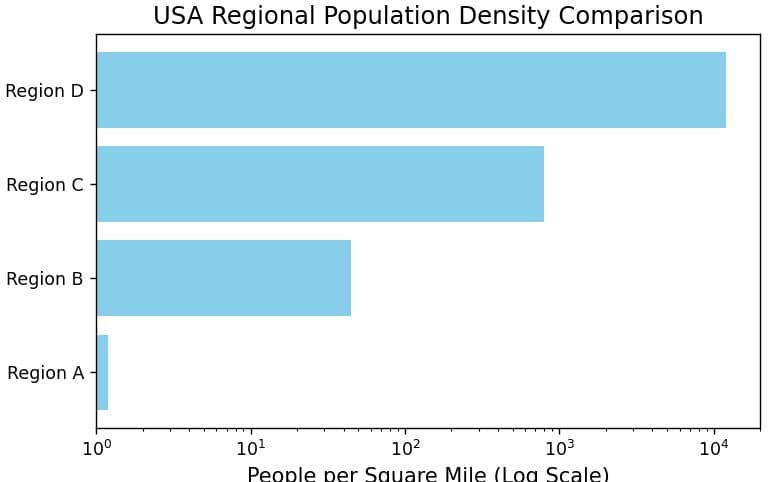

I executed the above example code and added the screenshot below.

By setting the limit to 1, I ensure the bars are visible, and the mathematical logic of the plot remains sound. I always recommend this “padding” technique for log scales.

Adjust Ticks and Labels for Clarity

When you change the Python Matplotlib xlim log scale, the default ticks can sometimes look sparse. I like to add minor ticks to make the log scale more intuitive for the reader.

I use the LogLocator and LogFormatter to refine the appearance. This is particularly useful for financial reports in the USA, where precision matters.

import matplotlib.pyplot as plt
import matplotlib.ticker as ticker

x = np.logspace(0, 5, 100)
y = x**2

fig, ax = plt.subplots(figsize=(10, 6))
ax.plot(x, y)

ax.set_xscale('log')
ax.set_xlim(1, 100000)

# I add minor ticks to improve readability
ax.xaxis.set_minor_locator(ticker.LogLocator(base=10.0, subs='auto', numticks=12))
ax.xaxis.set_minor_formatter(ticker.NullFormatter())

ax.set_title('Refined Log Scale Plot with Minor Ticks', fontsize=14)
ax.grid(True, which="both")
plt.show()

Adding these minor ticks helps my users realize that the distance between 10 and 20 is not the same as the distance between 80 and 90 on a log scale.

Real-World USA Case Study: Income vs. Healthcare Costs

To bring everything together, I will create a chart comparing income brackets in the USA to average annual healthcare costs. This data varies wildly, making it a perfect candidate for a log scale x-axis.

I will use a large range for the x-axis and set the limits precisely to show only the relevant data.

import matplotlib.pyplot as plt

# Income brackets in USA (Annual USD)
income_brackets = [20000, 40000, 80000, 160000, 320000, 640000]
# Average Healthcare Costs (USD)
healthcare_costs = [4000, 6500, 9000, 14000, 22000, 35000]

plt.figure(figsize=(12, 7))
plt.scatter(income_brackets, healthcare_costs, s=100, color='red', label='Data Points')
plt.plot(income_brackets, healthcare_costs, linestyle='-', color='gray', alpha=0.5)

# Setting log scale for x-axis to represent the vast income range
plt.xscale('log')

# Customizing the limits to focus on the active data range
plt.xlim(10000, 1000000)

# I use specific tick labels to make it user-friendly
plt.xticks([10000, 100000, 1000000], ['$10k', '$100k', '$1M'])

plt.title('USA Income vs. Healthcare Cost Analysis', fontsize=16)
plt.xlabel('Annual Income (USD - Log Scale)', fontsize=12)
plt.ylabel('Healthcare Costs (USD)', fontsize=12)
plt.legend()
plt.grid(True, which="both", alpha=0.3)

plt.show()

This chart clearly shows the trend without squashing the lower-income data points. By setting the xlim from 10k to 1M, I effectively frame the “American Middle Class” and “Upper Class” experience in one visual.

Common Mistakes to Avoid

In my experience, there are three common mistakes developers make when setting a log scale xlim in Python:

Setting the lower limit to 0: As mentioned, this causes errors. Always use a small positive number.
Forgetting to set the scale first: Sometimes I see people set the xlim and then the xscale. While Matplotlib is smart, it is safer to set the scale first so the limits are interpreted correctly.
Ignoring the data range: If your data only spans from 10 to 50, a log scale might actually make your plot harder to read. I only use log scales when the data spans at least two orders of magnitude.

Python Matplotlib is a powerful tool, but it requires a bit of finesse. Setting axis limits on a log scale is one of those skills that separates a beginner from an experienced developer.

I hope this guide helps you create better visualizations for your USA-based data projects. Log scales are essential for revealing patterns that linear scales simply cannot show.

The methods I shared above, using plt.xlim(), ax.set_xlim(), and handling zero values, are the foundation of professional plotting. Try implementing these in your next Python project and see the difference it makes in clarity.
