I remember the first time I tried building a complex GUI for a shipping logistics tool used by a firm in Chicago. I spent hours wrestling with widgets that just wouldn’t stay in place.
It was a frustrating afternoon of trial and error. I eventually realized that choosing the right geometry manager is the secret to a professional-looking Python application.
Since then, I have built dozens of desktop applications. I’ve learned exactly when to use the Pack manager and when the Grid manager is the superior choice.
In this tutorial, I’ll share my firsthand experience to help you master these two essential Tkinter tools. We will look at how they work and which one you should pick for your next project.
Understand the Tkinter Geometry Managers
Before we dive into the code, you need to understand that Tkinter doesn’t just “know” where to put a button or a label. You have to tell it which layout logic to use.
Think of it like organizing an office in New York City. You can either stack furniture against the walls (Pack) or align everything to a strict floor tile pattern (Grid).
The Pack Geometry Manager
The Pack manager is the simplest tool in the Tkinter library. It organizes widgets in blocks before placing them into a parent widget.
I usually reach for Pack when I have a very simple layout, like a single column of buttons or a basic top-down navigation menu.
It works by using “sides”, Top, Bottom, Left, and Right. If you don’t specify a side, Tkinter defaults to the top.
The Grid Geometry Manager
The Grid manager is my personal favorite for complex business applications. It treats the window like a spreadsheet with rows and columns.
I find this incredibly helpful when building data entry forms or dashboards. It gives you surgical precision over where every element sits.
You can even make widgets span across multiple rows or columns. This is perfect for large headers or wide text display areas.
Method 1: Use the Pack Manager for Linear Layouts
In my experience, Pack is best for “one-dimensional” layouts. If your widgets just need to follow each other in a line, this is the fastest way to code it.
Let’s look at a practical example. Imagine we are building a simple “Employee Check-In” sidebar for a retail store in Houston.
Why I Use Pack for Sidebars
When I build sidebars, I want the buttons to stay pinned to the top or bottom regardless of how the user resizes the window. Pack handles this “filling” behavior very naturally.
Full Code Example: Pack Manager
import tkinter as tk
def check_in():
print("Employee checked in successfully!")
# Initialize the main window
root = tk.Window()
root.title("Houston Retail - Staff Portal")
root.geometry("400x300")
# Creating a header label
# I use 'fill' to make sure the background color spans the width
header = tk.Label(root, text="Staff Check-In", bg="navy", fg="white", font=("Arial", 14))
header.pack(side="top", fill="x", pady=10)
# Creating action buttons
# Notice how easy it is to stack these vertically
btn_check_in = tk.Button(root, text="Start Shift", command=check_in, width=20)
btn_check_in.pack(side="top", pady=5)
btn_break = tk.Button(root, text="Go on Break", width=20)
btn_break.pack(side="top", pady=5)
btn_exit = tk.Button(root, text="End Shift", command=root.quit, width=20)
btn_exit.pack(side="bottom", pady=20)

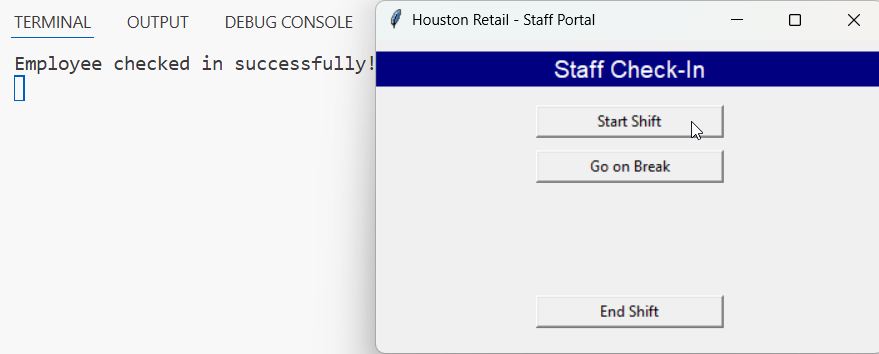

root.mainloop()You can see the output in the screenshot below.
In this code, I used the pady attribute to add vertical padding. It keeps the interface from looking cramped, which is a common mistake I see beginners make.
Method 2: Use the Grid Manager for Complex Forms
When I am tasked with creating a tax calculator or a mortgage application form for a US bank, I never use Pack. I always go straight to Grid.
Grid allows you to align labels and entry boxes perfectly. In a professional app, you want your “First Name” and “Last Name” boxes to start at the same horizontal pixel.
My Strategy for Grid Layouts
I always sketch my layout on a piece of paper first. I draw a grid and number the rows starting from 0. This saves me a massive amount of debugging time later.
Full Code Example: Grid Manager
Here is a full example of a simplified “US Mortgage Lead Form.”
import tkinter as tk
from tkinter import messagebox
def submit_lead():
messagebox.showinfo("Success", "Lead sent to our California office!")
app = tk.Tk()
app.title("Premium Home Loans - Application")
app.geometry("450x350")
app.padx = 20
app.pady = 20
# Row 0: Title spanning two columns
title_label = tk.Label(app, text="Mortgage Inquiry Form", font=("Helvetica", 16, "bold"))
title_label.grid(row=0, column=0, columnspan=2, pady=20)
# Row 1: Applicant Name
tk.Label(app, text="Full Name:").grid(row=1, column=0, sticky="w", pady=5)
name_entry = tk.Entry(app, width=30)
name_entry.grid(row=1, column=1, pady=5)
# Row 2: State of Residence
tk.Label(app, text="State (US):").grid(row=2, column=0, sticky="w", pady=5)
state_entry = tk.Entry(app, width=30)
state_entry.grid(row=2, column=1, pady=5)
# Row 3: Estimated Credit Score
tk.Label(app, text="Credit Score:").grid(row=3, column=0, sticky="w", pady=5)
credit_entry = tk.Entry(app, width=30)
credit_entry.grid(row=3, column=1, pady=5)
# Row 4: Submit Button
submit_btn = tk.Button(app, text="Check Rates", bg="green", fg="white", command=submit_lead)
submit_btn.grid(row=4, column=0, columnspan=2, pady=20)

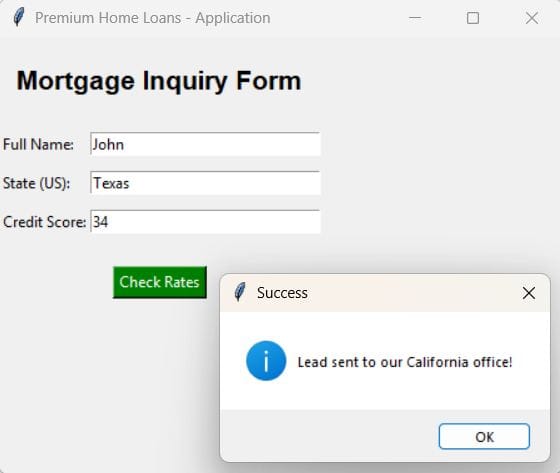

app.mainloop()You can see the output in the screenshot below.
Notice the sticky=”w” parameter. This stands for “West” (left). I use this to make sure my labels are left-aligned, which is the standard for forms in the USA.
Key Differences: Pack vs Grid
After years of coding, I’ve identified a few “Golden Rules” that help me decide between the two.
- Mixing Managers: Never mix pack() and grid() in the same parent container (like the same Frame or Root). Your app will likely freeze or crash. I learned this the hard way during a live demo!
- Responsiveness: Pack is generally more “fluid.” If you want elements to move around easily when a window is resized, Pack is great.
- Alignment: Grid is the king of alignment. If you have columns of data or buttons that need to be the same size, use Grid.
- Simplicity: Pack requires fewer lines of code for very basic layouts.
When to use the Place Manager?
You might have heard of a third manager called place(). I rarely use it in professional work.
place() uses absolute coordinates (like x=100, y=50). The problem is that if a user has a high-resolution screen or changes their font size, your layout will break.
Stick to Pack and Grid. They are “relative” managers, meaning they adapt much better to different computers.
Professional Tips for Better Layouts
I always tell my junior developers to use Frames. A Frame is like a container within your window.
I often use a Grid to divide my main window into two large sections. Then, inside those sections, I might use Pack to organize the specific buttons.
This “nested” approach gives you the best of both worlds. It allows for high-level structure and low-level simplicity.
Pro Tip: Use Weight
In the Grid manager, if you want a column to expand when the window grows, you must use columnconfigure with a weight.
I spent months wondering why my Grid layouts looked centered but didn’t grow. Adding weight=1 tells Tkinter that a specific column should take up all the extra space.
Troubleshoot Common Issues
One of the most common emails I get is: “Why did my widget disappear?”
Usually, this happens because the developer forgot to call .pack() or .grid() at all. The widget is created in memory, but Tkinter hasn’t been told to draw it.
Another issue is the “Fighting Managers” bug. If you try to use pack() on one button and grid() on another within the same window, Tkinter gets confused and will often hang.
If your window isn’t showing up or is stuck, check that you haven’t mixed these two up.
Final Thoughts on Tkinter Layouts
Choosing between Pack and Grid really depends on the specific goals of your interface.
If you are building a quick script for your team in Seattle to automate a simple task, Pack is your best friend. It’s fast and gets the job done.
However, if you are designing a customer-facing application where visual precision is key, Grid is worth the extra effort.
I hope this guide helps you feel more confident in your Python GUI journey. Both tools are powerful; you just need to pick the right one for the task at hand.
