Matplotlib Horizontal Grid Lines (and set_axisbelow)

To show only horizontal grid lines in Matplotlib, pass axis="y" to grid:

ax.grid(axis="y")       # horizontal lines only
ax.grid(axis="x")       # vertical lines only
ax.grid(True)           # both

Add ax.set_axisbelow(True) with it. Without that, gridlines are drawn on top of your bars and markers, which isn’t what anyone wants.

Every plot below is a real Matplotlib window on Python 3.12.5, Matplotlib 3.11.2.

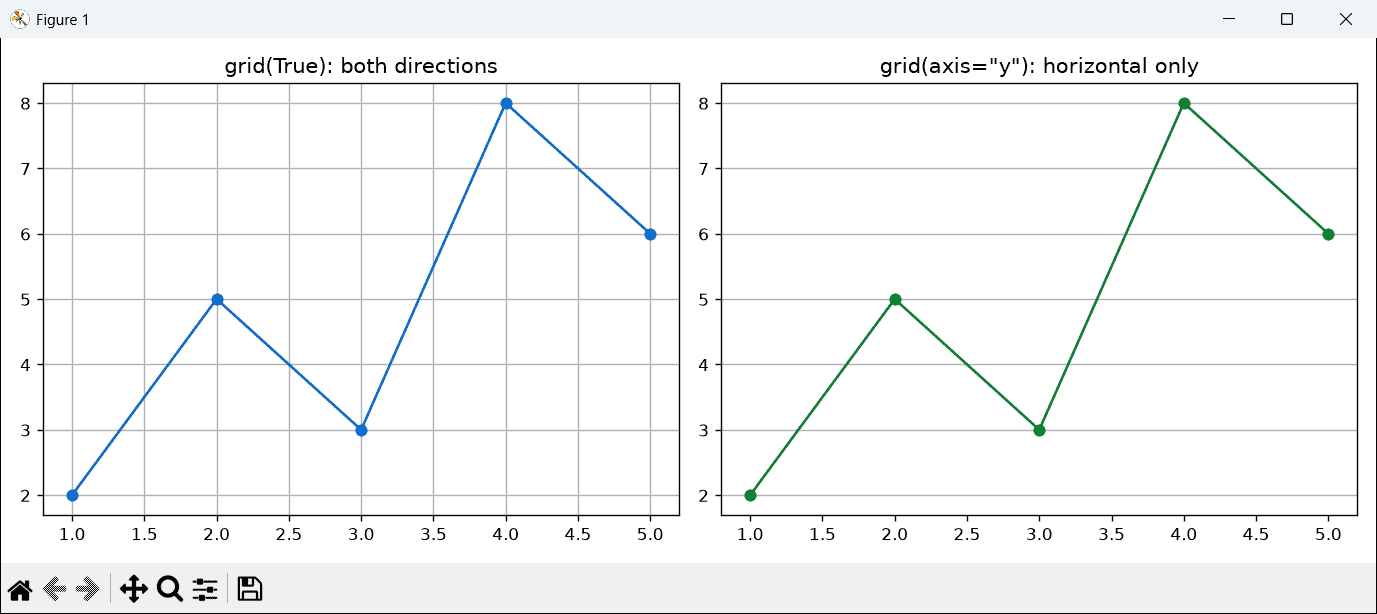

Showing horizontal grid lines only

The axis argument decides which set of lines you get:

import matplotlib.pyplot as plt

x = [1, 2, 3, 4, 5]
y = [2, 5, 3, 8, 6]

fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(11, 4.2))

ax1.plot(x, y, marker="o", color="#0b6bcb")
ax1.grid(True)
ax1.set_title('grid(True): both directions')

ax2.plot(x, y, marker="o", color="#0a7d32")
ax2.grid(axis="y")               # horizontal lines only
ax2.set_title('grid(axis="y"): horizontal only')

plt.tight_layout(); plt.show()

print('axis="y" draws lines ACROSS the plot, at each y tick')
print('axis="x" draws vertical lines, at each x tick')

Output:

axis="y" draws lines ACROSS the plot, at each y tick
axis="x" draws vertical lines, at each x tick

Horizontal lines are the ones that help a reader estimate a value, because they connect the data to the y axis labels.

Vertical lines mostly add noise on a line chart. They earn their place when the x axis is categorical or a date range people need to line up.

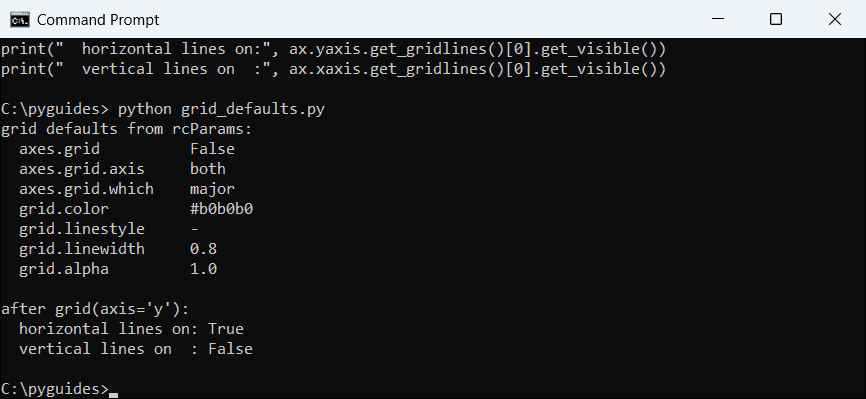

Matplotlib grid defaults

Grid is off by default, and every visual property comes from rcParams:

import matplotlib
import matplotlib.pyplot as plt

print("grid defaults from rcParams:")
for key in ("axes.grid", "axes.grid.axis", "axes.grid.which",
            "grid.color", "grid.linestyle", "grid.linewidth", "grid.alpha"):
    print(f"  {key:<18} {matplotlib.rcParams[key]}")

print()
fig, ax = plt.subplots()
ax.plot([1, 2, 3], [2, 4, 3])
ax.grid(axis="y")

print("after grid(axis='y'):")
print("  horizontal lines on:", ax.yaxis.get_gridlines()[0].get_visible())
print("  vertical lines on  :", ax.xaxis.get_gridlines()[0].get_visible())

Output:

grid defaults from rcParams:
  axes.grid          False
  axes.grid.axis     both
  axes.grid.which    major
  grid.color         #b0b0b0
  grid.linestyle     -
  grid.linewidth     0.8
  grid.alpha         1.0

after grid(axis='y'):
  horizontal lines on: True
  vertical lines on  : False

Setting	Default	What it controls
axes.grid	False	Whether the grid shows at all
axes.grid.axis	both	Which axes get lines
axes.grid.which	major	Major, minor or both ticks
grid.color	#b0b0b0	Line colour
grid.linewidth	0.8	Line thickness

Set plt.rcParams["axes.grid"] = True once at the top of a script and every plot gets a grid without repeating yourself.

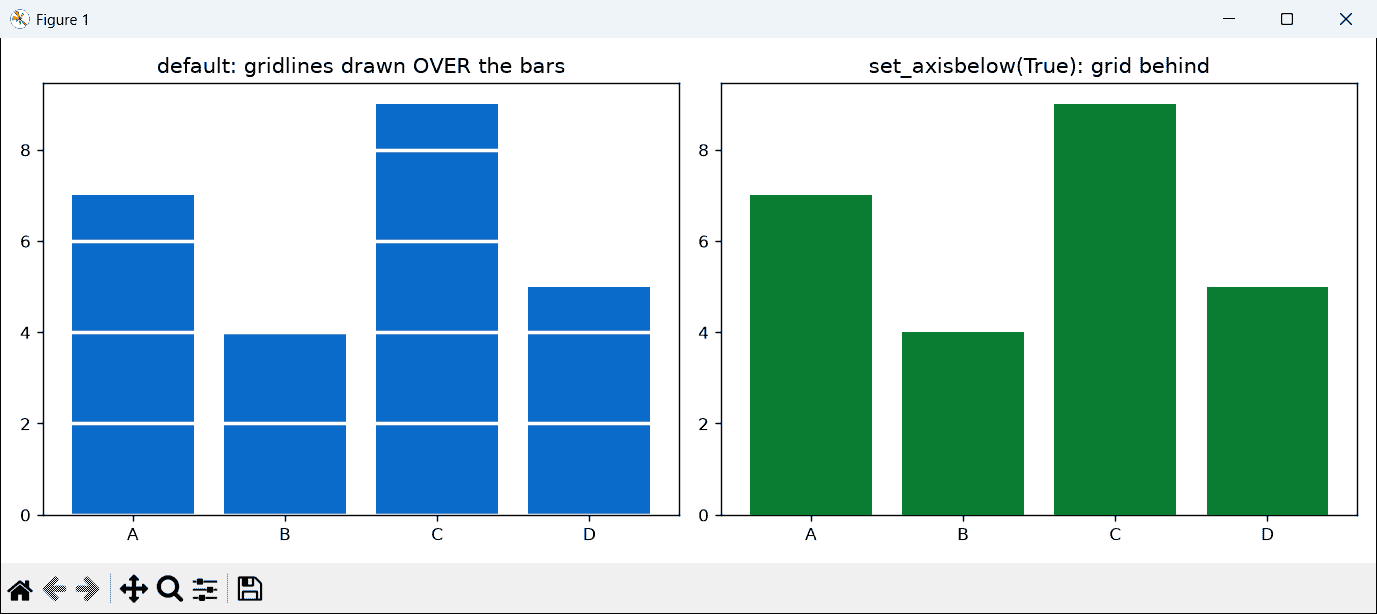

Why do Matplotlib gridlines appear on top of bars?

This is the most common complaint about Matplotlib grids, and it is a drawing-order problem:

import matplotlib.pyplot as plt

categories = ["A", "B", "C", "D"]
values = [7, 4, 9, 5]

fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(11, 4.2))

bars1 = ax1.bar(categories, values, color="#0b6bcb")
ax1.grid(axis="y", color="white", linewidth=2)
ax1.set_title("default: gridlines drawn OVER the bars")

ax2.bar(categories, values, color="#0a7d32")
ax2.set_axisbelow(True)          # push the grid behind everything
ax2.grid(axis="y", color="white", linewidth=2)
ax2.set_title("set_axisbelow(True): grid behind")

plt.tight_layout(); plt.show()

print("bar zorder     :", bars1[0].get_zorder())
print("gridline zorder:", ax1.yaxis.get_gridlines()[0].get_zorder())
print("higher zorder draws on top, which is why the grid cuts across the bars")

Output:

bar zorder     : 1
gridline zorder: 2
higher zorder draws on top, which is why the grid cuts across the bars

Gridlines have a zorder of 2 and bars have a zorder of 1, so the grid wins and draws over the top.

ax.set_axisbelow(True) pushes the whole axis layer, gridlines included, behind your data. It’s one line and it should be a habit.

The effect is most obvious on bar charts, and it applies equally to filled areas and large scatter markers. See scatter marker styling for the marker case.

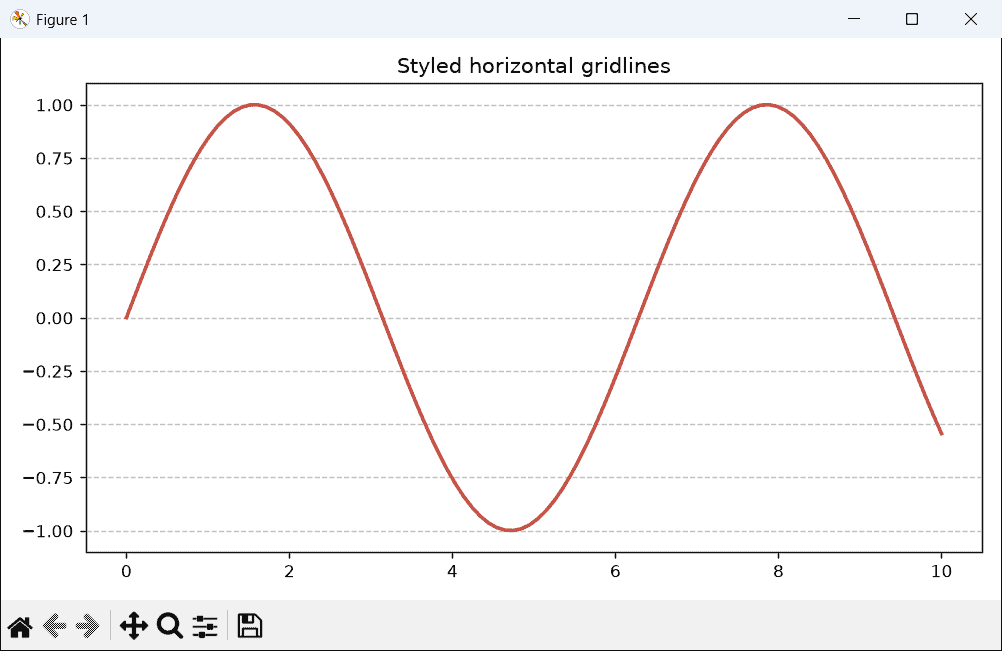

Styling horizontal grid lines

grid passes any extra arguments straight through to the line objects:

import matplotlib.pyplot as plt
import numpy as np

x = np.linspace(0, 10, 100)

fig, ax = plt.subplots(figsize=(8, 4.5))
ax.plot(x, np.sin(x), color="#c0392b", lw=2)

ax.set_axisbelow(True)
ax.grid(axis="y",
        color="#999999",
        linestyle="--",
        linewidth=0.8,
        alpha=0.6)

ax.set_title("Styled horizontal gridlines")
plt.tight_layout(); plt.show()

print("the styling arguments are passed straight to Line2D:")
print("  color, linestyle, linewidth, alpha, dashes")

Output:

the styling arguments are passed straight to Line2D:
  color, linestyle, linewidth, alpha, dashes

• color — a name or hex code. Mid-grey stays out of the way.
• linestyle — "--" or ":" read as less important than solid.
• linewidth — keep it under 1 so lines do not compete with the data.
• alpha — 0.3 to 0.6 is usually enough to be visible without shouting.

A grid is reference furniture. If a reader notices it before they notice the data, it’s too strong.

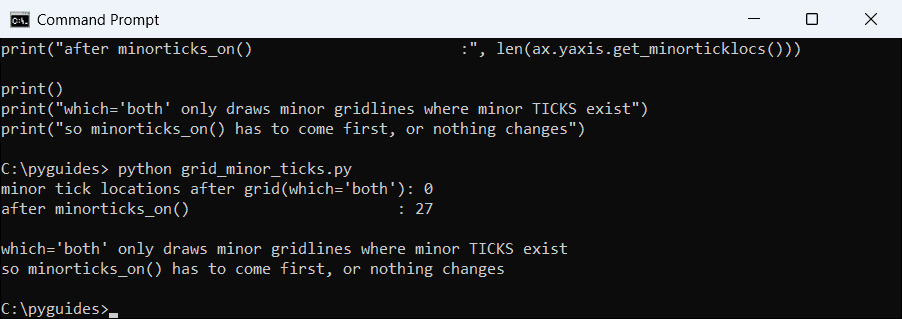

Minor grid lines and which=both

which="both" looks like it should add finer lines, and on its own it does nothing:

import matplotlib.pyplot as plt

fig, ax = plt.subplots()
ax.plot([1, 2, 3], [1, 4, 2])

ax.grid(which="both", axis="y")
print("minor tick locations after grid(which='both'):", len(ax.yaxis.get_minorticklocs()))

ax.minorticks_on()
print("after minorticks_on()                       :", len(ax.yaxis.get_minorticklocs()))

print()
print("which='both' only draws minor gridlines where minor TICKS exist")
print("so minorticks_on() has to come first, or nothing changes")

Output:

minor tick locations after grid(which='both'): 0
after minorticks_on()                       : 27

which='both' only draws minor gridlines where minor TICKS exist
so minorticks_on() has to come first, or nothing changes

Gridlines are drawn at tick positions, and there aren’t any minor ticks by default. No ticks means no lines, whatever which says.

Call ax.minorticks_on() first, then grid(which="minor") to style them separately from the majors.

Minor gridlines matter most on a logarithmic axis, where they mark the values between the decades. There is more on that in setting a log scale y axis.

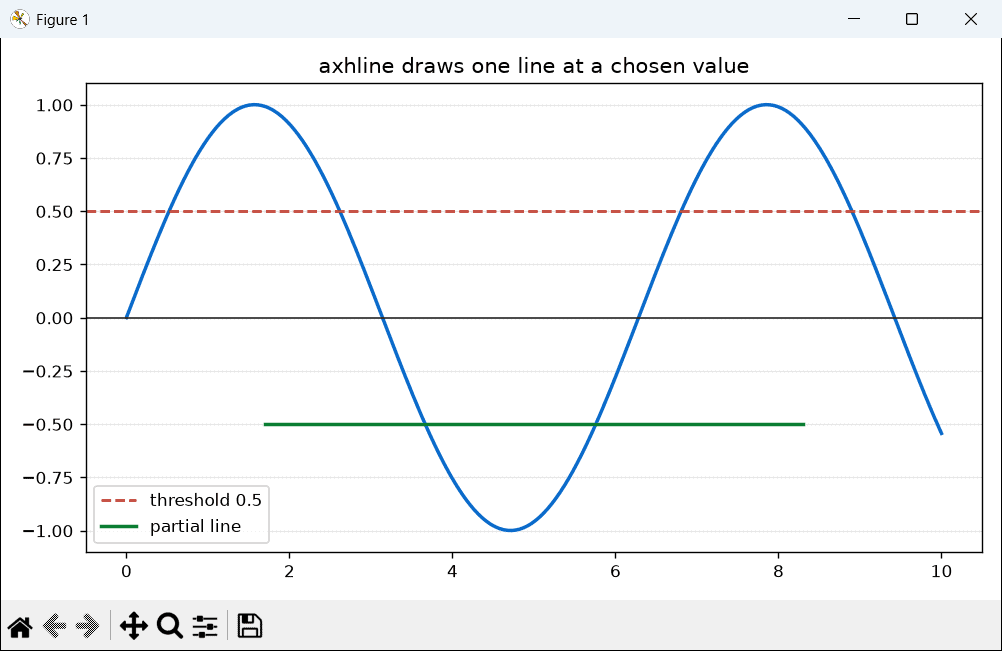

Drawing a single horizontal line with axhline

A grid draws a line at every tick. To mark one specific value, you want axhline instead:

import matplotlib.pyplot as plt
import numpy as np

x = np.linspace(0, 10, 200)

fig, ax = plt.subplots(figsize=(8, 4.5))
ax.plot(x, np.sin(x), color="#0b6bcb", lw=2)

# a single horizontal line at one value, which is NOT a gridline
ax.axhline(0, color="#333333", lw=1)
ax.axhline(0.5, color="#c0392b", ls="--", lw=1.5, label="threshold 0.5")

# and a partial one, spanning 20% to 80% of the width
ax.axhline(-0.5, xmin=0.2, xmax=0.8, color="#0a7d32", lw=2, label="partial line")

ax.legend(); ax.set_title("axhline draws one line at a chosen value")
ax.set_axisbelow(True); ax.grid(axis="y", alpha=.3)
plt.tight_layout(); plt.show()

print("axhline(y) spans the full width; xmin and xmax are FRACTIONS, 0 to 1")
print("axhspan(low, high) shades a band instead")

Output:

axhline(y) spans the full width; xmin and xmax are FRACTIONS, 0 to 1
axhspan(low, high) shades a band instead

Goal	Use
Lines at every y tick	ax.grid(axis="y")
One line at a value	ax.axhline(y)
Part of the width	ax.axhline(y, xmin=0.2, xmax=0.8)
A shaded band	ax.axhspan(low, high)
A vertical equivalent	ax.axvline(x)

xmin and xmax are fractions of the axes width, from 0 to 1, not data coordinates. That catches people out constantly.

If you want a line in data coordinates, use ax.plot with two points instead, or ax.hlines, which takes real x values.

Common Matplotlib grid problems

Symptom	Cause	Fix
Grid covers the bars	Gridlines have a higher zorder	ax.set_axisbelow(True)
No minor gridlines	No minor ticks exist	ax.minorticks_on() first
Grid on the wrong axis	axis not set	axis="y" for horizontal
Nothing appears	Called on the wrong axes	Use ax.grid, not plt.grid
xmin ignored	It is a fraction, not data	Use ax.hlines
Grid too dominant	Default solid 0.8 line	Lower alpha, use dashes
