When I first started visualizing large datasets with Python, I often found myself staring at cluttered heatmaps. Everything looked like a tiny, unreadable grid because I didn’t know how to focus on just a specific section of my data.
I spent hours trying to figure out why my x-axis labels wouldn’t line up when I used standard plotting tricks. Eventually, I realized that managing the Matplotlib heatmap xlim requires a slightly different approach than a standard line plot.
In this tutorial, I will show you exactly how to control the x-axis limits of your heatmaps using various Python techniques.
Basics of Heatmaps in Matplotlib
A heatmap is essentially a 2D representation of data where values are depicted by colors. In the Python Matplotlib library, we usually create these using the imshow() or pcolormesh() functions.
By default, Matplotlib tries to show the entire array you provide.
However, when you are dealing with something like hourly traffic data for a busy retail store in Chicago, you might only want to see the peak morning hours.
That is where adjusting the Python Matplotlib xlim becomes essential for clarity.
Method 1: Use plt.xlim() for Quick Adjustments
The easy way to change the visible range of your x-axis is by using the plt.xlim() function. I use this method when I need a quick “zoom” without over-complicating my code.
Imagine you are tracking the sales of a tech company over 24 hours. If you only care about the business hours (9 AM to 5 PM), you can limit the view.
import matplotlib.pyplot as plt
import numpy as np
# Create a sample dataset representing sales across 24 hours for 7 days
# Let's say we are looking at a New York-based e-commerce warehouse
data = np.random.rand(7, 24)
plt.figure(figsize=(10, 5))
plt.imshow(data, cmap='YlGnBu', aspect='auto')
# Using the Python keyword to set x-axis limits from 9 to 17 (9 AM to 5 PM)
plt.xlim(9, 17)
plt.title('Business Hour Sales Density (9 AM - 5 PM)')
plt.xlabel('Hour of the Day')
plt.ylabel('Day of the Week')
plt.colorbar(label='Sales Intensity')

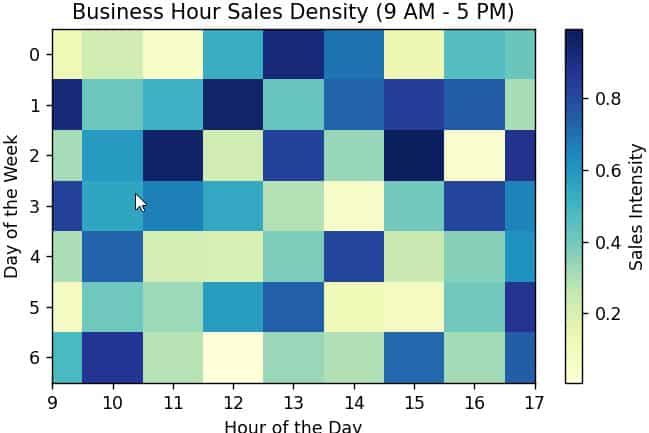

plt.show()You can refer to the screenshot below to see the output.
When you run this Python code, Matplotlib clips the view. You aren’t deleting the data; you are just moving the camera closer to the x-axis section you specified.
Method 2: Handle xlim with the extent Parameter
One thing that tripped me up early on was the coordinate system of imshow().
By default, imshow() uses pixel indices (0, 1, 2…). If your x-axis represents something specific, like years from 2010 to 2025, plt.xlim() might not behave as you expect unless you define the “extent.”
The extent parameter in Python’s Matplotlib allows you to define the data coordinates for the entire image.
import matplotlib.pyplot as plt
import numpy as np
# Data for a 10-year period (2014-2024) across 12 months
# Simulating average monthly temperatures in Austin, Texas
temp_data = np.random.randint(40, 105, size=(12, 11))
# Define the boundaries: [x_min, x_max, y_min, y_max]
# We want the x-axis to show years 2014 to 2024
img_extent = [2014, 2024, 1, 12]
plt.figure(figsize=(12, 6))
plt.imshow(temp_data, cmap='hot', aspect='auto', extent=img_extent)
# Now we can precisely use xlim based on the years
plt.xlim(2018, 2022)
plt.title('Focus View: Austin Temperature Trends (2018-2022)')
plt.xlabel('Year')
plt.ylabel('Month')
plt.colorbar(label='Temperature °F')

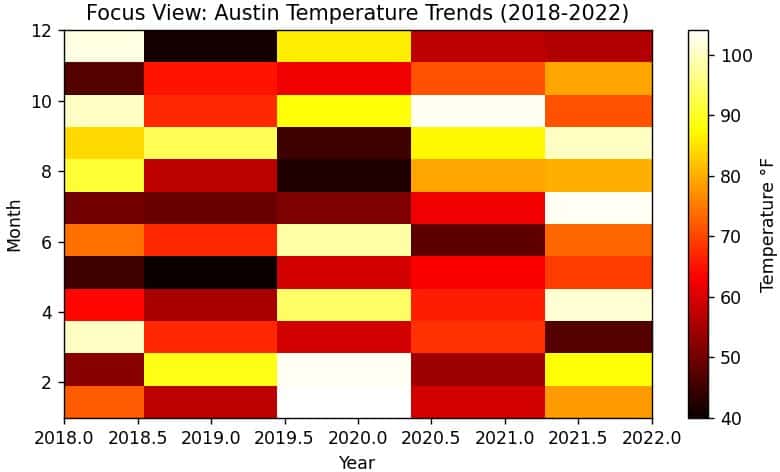

plt.show()You can refer to the screenshot below to see the output.
This approach is much cleaner for professional reports. It ensures your Matplotlib heatmap xlim corresponds to the actual years in your dataset.
Method 3: Use the Object-Oriented set_xlim() Approach
If you are building a dashboard or a complex multi-plot figure, you should use the object-oriented API.
Instead of calling plt.xlim(), you call ax.set_xlim(). I use this approach in almost all my production-level Python scripts because it provides better control over specific subplots.
import matplotlib.pyplot as plt
import numpy as np
# Generate random volatility data
# 50 days of data across 10 different stock sectors
volatility_matrix = np.random.standard_normal((10, 50))
fig, ax = plt.subplots(figsize=(12, 5))
# Plotting the heatmap using the Python pcolormesh function
mesh = ax.pcolormesh(volatility_matrix, cmap='RdBu')
# Set the x-axis limits to focus on days 20 to 40
ax.set_xlim(20, 40)
# Adding labels and a title
ax.set_title('Stock Sector Volatility - Mid-Month Snapshot')
ax.set_xlabel('Trading Days')
ax.set_ylabel('Market Sectors')
# Add a colorbar
fig.colorbar(mesh, ax=ax, label='Volatility Index')

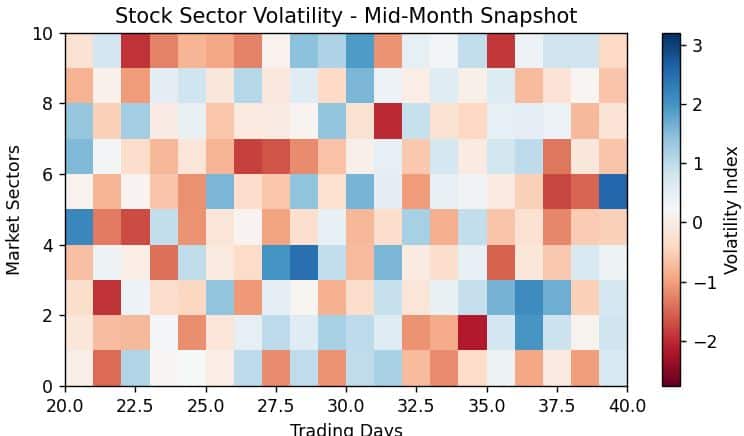

plt.show()You can refer to the screenshot below to see the output.
Using ax.set_xlim() is best practice when you have multiple axes in one figure. It prevents you from accidentally changing the limits of the wrong plot.
Common Challenges and Solutions
A common issue I see is the “white space” problem. Sometimes, when you set a wide xlim, Matplotlib shows empty white areas because the image doesn’t cover that range.
To fix this, ensure your extent matches the intended range or use ax.set_aspect(‘auto’) to allow the heatmap to fill the available space.
Another tip: if you are using categorical data (like names of US States), remember that Matplotlib still treats the x-axis as numeric indices (0, 1, 2…).
If you want to show only the first five states, you would use plt.xlim(-0.5, 4.5). The -0.5 offset is a little Python trick to make sure the first cell isn’t cut in half! I hope this guide helps you create cleaner, more focused heatmaps in your Python projects.
Whether you are analyzing sensor data from a factory in Ohio or tracking website clicks from users across the US, mastering the x-axis is key to a good visualization.
