Matplotlib set_xticklabels

In this Python Matplotlib tutorial, we will discuss Matplotlib set_xticklabels in matplotlib. Here we will cover different examples related to set_xticklabels using matplotlib. And we will also cover the following topics:

  • Matplotlib set_xticklabels
  • Matplorlib set_xticklabels fontdict
  • Matplotlib set_xticklabels fontsize
  • Matplotlib set_xticklabels font
  • Matplotib set_xticklabels color
  • Matplotlib set_xticklabels vertical
  • Matplotlib set_xticklabels horizontal alignment
  • Matplotlib set_xticklabels rotation
  • Matplotlib set_xticklabels hide
  • Matplotlib set_xticklabels alignment
  • Matplotlib set_xticklabels minor
  • Matplotlib boxplot set_xticklabels

Matplotlib set_xticklabels

In this section, we learn about the set_xticklabels() function in the axes module of matplotlib in Python. The set_xticklabels function is used to set the x-tick labels with the list of string labels.

The syntax is given below:

matplotlib.axes.Axes.set_xticklabels(labels, fontdict=None, minor=False, **kwargs)

The following are the parameters used above:

ParametersValueDefaultDescription
labelslist of stringSpecifies the list of string labels
fontdictdict{ ‘fontsize’ : rcParams[ ‘ axes.titlesize ‘ ], ‘fontweight’ : rcParams[ ‘ axes.titleweight ‘ ], ‘verticalalignment’ : ‘baseline’, ‘horizontalalignment’ : loc }This parameter is used to control the appearance of the ticklabels.
minorboolFalseThis parameter is used to specify whether to set minor ticklabels rather than the major ticklabels.

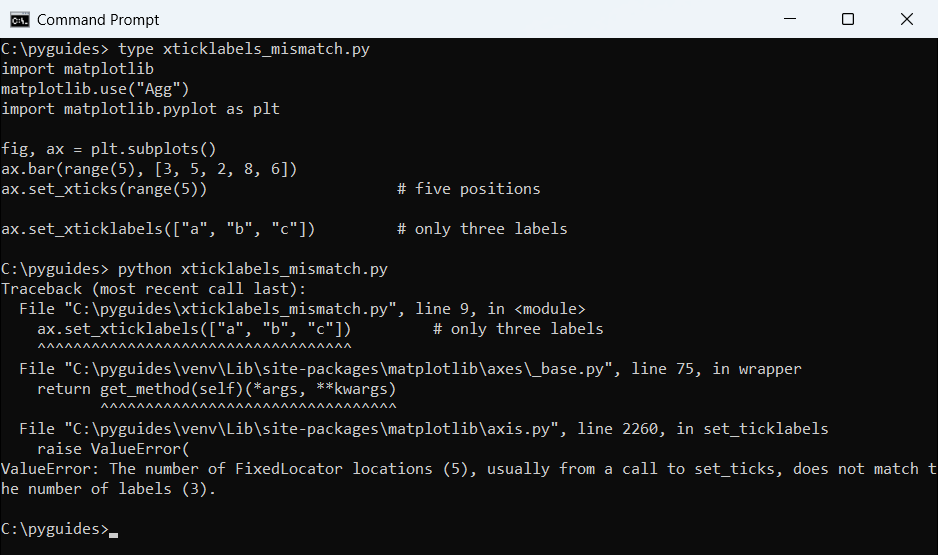

Warning

This method only be used after fixing the tick positions using Axes.set_xticks.

Let’s see an example:

# Import Library

import numpy as np
import matplotlib.pyplot as plt

# Create subplot

fig, ax = plt.subplots()

# Define Data

x = np.linspace(0, 5 * np.pi, 100)
y1 = np.sin(x)

# Plot

ax.plot(x, y1)

# Set ticklabels

ax.set_xticks([0, np.pi, 2 * np.pi, 3 * np.pi, 4 * np.pi, 5 * np.pi])
ax.set_xticklabels(['0', r'$\pi$', r'2$\pi$', r'3$\pi$', r'4$\pi$', r'5$\pi$'])

# Add fig title

fig.suptitle('set_xticklabels()function Example', fontweight ="bold")

# Display

plt.show()
  • In the above example, firstly we import numpy and matplotlib library.
  • After this, we create a subplot by using the subplots() function.
  • To define data coordinates, we use linespace() and sin() methods.
  • To plot the graph between x and y data coordinates, we use plot() function.
  • To fix the position of ticks, use set_xticks() function.
  • To set string labels at x-axis tick labels, use set_xticklabels() function.
  • To add suptitle, we use the suptitle() function of the figure class.
  • To visualize the plot on the user’s screen, use the show() function.
matplotlib set_xticklabels
set_xticklabels()

Matplotlib set_xticklabels fontdict

We’ll learn how to use the fontdict parameter of the set_xticklabels method. fondict parameter is a dictionary used to control the appearance of the ticklabels.

The following is the syntax:

matplotlib.axes.Axes.set_xticklabels(labels, fontdict=None)

Example:

# Import Library

import numpy as np
import matplotlib.pyplot as plt

# Create subplot

fig, ax = plt.subplots()

# Define Data

x = np.linspace(0, 3 * np.pi, 100)
y1 = np.cos(x)

# Plot

ax.plot(x, y1)

# fontdict dictionary

font_dict = {'fontsize': 20, 'fontweight': 'heavy', 'verticalalignment':'top'}

# Set ticklabels

ax.set_xticks([0, np.pi, 2 * np.pi, 3 * np.pi])
ax.set_xticklabels(['0', r'$\pi$', r'2$\pi$', r'3$\pi$'], fontdict=font_dict)

# Add fig title

fig.suptitle('set_xticklabels fontdict Example', fontweight ="bold")

# Display

plt.show()

Here we pass the fontdict parameter to the set_xticklabels function. We create a dictionary font_dict to change the appearance of ticklabels with the following key and value:

keyvalue
fontsize20
fontweightheavy
verticalalignmenttop

Output:

matplotlib set_xticklabels fontdict
set_xticklabels(fontdict={})

Read Matplotlib two y axes

Matplotlib set_xticklabels fontsize

Here we’ll learn how we can modify the font size of x-axis tick labels. To change the size, we have to pass the fontsize argument to the set_xticklabels method.

The following is the syntax:

matplotlib.axes.Axes.set_xtciklabels(labels, fontsize=None)

Let’s see an example:

# Import Library


import numpy as np
import matplotlib.pyplot as plt

# Create subplot


fig, ax = plt.subplots()

# Define Data

x = np.linspace(0, 3 * np.pi, 100)
y = np.cos(30*x)

# Plot

ax.plot(x, y)

# Set ticklabels

ax.set_xticks([0, np.pi, 2 * np.pi, 3 * np.pi])
ax.set_xticklabels(['0', r'$\pi$', r'2$\pi$', r'3$\pi$'], fontsize=5.5)

# Add fig title

fig.suptitle('set_xticklabels fontsize Example', fontweight ="bold")

# Display


plt.show()
  • In the above example, we set text labels at x-axis by using set_xticklabels function and we pass fontsize argument to the function to change font size of the ticklabels.
  • We assign 5.5 pt value to fontsize argument.
matplotlib set_xticklabels fontsize
set_xticklabels(fontsize=5.5)

Read Stacked Bar Chart Matplotlib

Matplotlib set_xtciklabels font

We’ll learn how to change the font style of tick labels at the x-axis. To change the style we pass the fontstyle parameter to the set_xticklabels method.

The following is the syntax:

matplotlib.axes.Axesset_xticklabels(labels, fontstyle=None)

Let’s see an example:

# Import Library

import numpy as np
import matplotlib.pyplot as plt

# Create subplot

fig, ax = plt.subplots()

# Define Data

x = np.linspace(0, 6 * np.pi, 250)
y = np.sin(60*x)

# Plot

ax.plot(x, y)

# Set ticklabels

ax.set_xticks([0, 2 * np.pi, 4 * np.pi, 6 * np.pi])
ax.set_xticklabels(['0', r'2$\pi$', r'4$\pi$', r'6$\pi$'], fontstyle='italic')

# Add fig title


fig.suptitle('set_xticklabels fontstyle Example', fontweight ="bold")

# Display


plt.show()

Here we change the font style of tick labels at the x-axis and set it to italic.

matplotlib set_xticklabels font
set_xticklabels(fontstyle=’italic’)

Read Matplotlib 3D scatter

Matplotlib set_xticklabels color

Here we change the font style of tick labels at x-axis and set it to italic. Here we’ll learn to change the color of xticklabels. For this we have to pass the color argument to set_xticklabels method.

The following is the syntax:

matplotlib.axes.Axes.set_xticklabels(labels, color=None)

Let’s see an example:

# Import Library

import numpy as np
import matplotlib.pyplot as plt

# Create subplot

fig, ax = plt.subplots()

# Define Data

x = np.linspace(0, 3 * np.pi, 100)
y = np.sin(x)

# Plot

ax.plot(x, y)

# Set ticklabels

ax.set_xticks([0, np.pi, 2 * np.pi, 3 * np.pi])
ax.set_xticklabels(['0', r'$\pi$', r'2$\pi$', r'3$\pi$'], color='red', fontsize=15)

# Add fig title

fig.suptitle('set_xticklabels color Example', fontweight='bold')

# Display


plt.show()
  • In the above example, we define data coordinates using linespace() and sin() methods and to plot them we use, plot() method.
  • After this, we use set_xticks() method for fixing the position of ticks at x-axis.
  • Then we use set_xticklabels() method for setting string labels at axis. And to change the color of ticklabels we pass color argument to method.
matplotlib set_xticklabels color
set_xticklables(color=’red)

By default, color of ticklabels is black, now we change it red.

Matplotlib set_xticklabels vertical

Here we’ll learn to change vertical alignment of xticklabels . To change the alignment pass verticalalignment argument to set_xticklabels() method.

In place of verticalalignment you can also write va.

The following is the syntax:

matplotlib.axes.Axes.set_xticklabels(lables, verticalalignemnt='center' | 'top' | 'bottom' | 'baseline')

4 different vertical alignments are:

  • center
  • top
  • bottom
  • baseline

verticalalignment=’center’

Example:

# Import Library


import numpy as np
import matplotlib.pyplot as plt

# Create subplot

fig, ax = plt.subplots()

# Define Data

x = np.linspace(0, 3 * np.pi, 100)
y = np.tan(x)

# Plot

ax.plot(x, y)

# Set ticklabels

ax.set_xticks([0, np.pi, 2 * np.pi, 3 * np.pi])

ax.set_xticklabels(['0', r'$\pi$', r'2$\pi$', r'3$\pi$'], verticalalignment='center')

# Add fig title

fig.suptitle('set_xticklabels verticalalignment Example', fontweight='bold')

# Display

plt.show()
  • Here we use the linespace() and tan() methods to define data coordinates.
  • After this, we use the plot() method to plot a graph between x and y coordinates.
  • To set the tick marks, use set_xticks() method.
  • To set the tick labels in string format, we use the set_xticklabels() method.
  • Here we set the verticalalignemnt of tick labels to the center.
matplotlib set_xticklabels verticalalignment
verticalalignement=’center’

Verticalalignemnt=’top’

Example:

# Import Library

import numpy as np
import matplotlib.pyplot as plt

# Create subplot

fig, ax = plt.subplots()

# Define Data

x = np.linspace(0, 3 * np.pi, 100)
y = np.tan(x)

# Plot

ax.plot(x, y)

# Set ticklabels

ax.set_xticks([0, np.pi, 2 * np.pi, 3 * np.pi])

ax.set_xticklabels(['0', r'$\pi$', r'2$\pi$', r'3$\pi$'], verticalalignment='top')

# Add fig title

fig.suptitle('set_xticklabels verticalalignment Example', fontweight='bold')

# Display

plt.show()

Here we pass the verticalalignment argument to the set_xticklabels method, to set the alignment of ticklabels to the top.

matplotlib set_xticklabels with verticalalignment
verticalalignemnt=’top’

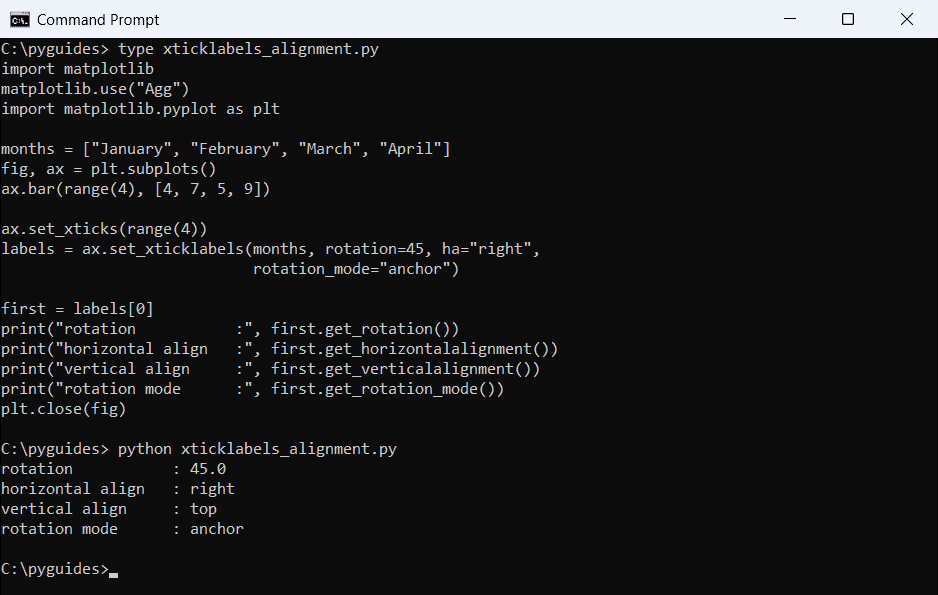

Matplotlib set_xticklabels horizontal alignemnt

Here we’ll learn to change the horizontal alignment of x ticklabels. To change the alignment pass the horizontalalignment parameter to the method.

You can write ha in place of horizontalalignment

The following is the syntax:

matplotlib.axes.Axes.set_xticklabels(labels, horizontalalignment='center' | 'right' | 'left' )

Let’s see examples of different horizontal alignment:

horizontalalignment=’center’

# Import Library

import numpy as np
import matplotlib.pyplot as plt

# Create subplot

fig, ax = plt.subplots()

# Define Data

x = np.linspace(0, 5 * np.pi, 150)
y1 = np.tan(x)

# Plot

ax.plot(x, y1)

# Set ticklabels

ax.set_xticks([0, np.pi, 2 * np.pi, 3 * np.pi, 4 * np.pi, 5 * np.pi])

ax.set_xticklabels(['0', r'$\pi$', r'2$\pi$', r'3$\pi$', r'4$\pi$', r'5$\pi$'], horizontalalignment='center')

# Add fig title

fig.suptitle('set_xticklabels horizontalalignmnt Example', fontweight='bold')

# Display

plt.show()
  • Here we use the linespace() and tan() method to define data coordinates.
  • After this, we use the plot() function to plot the line graph between x and y data coordinates.
  • To set the ticks, use set_xticks() method .
  • To set the tick labels in string format, we use the set_xticklabels() method.
  • Here we set the horizontalalignment of tick labels to the center.
matplotlib set_xticklabels horizontalalignemnt
ha=’center’

horizontalalignment= ‘right’

# Import Library

import numpy as np
import matplotlib.pyplot as plt

# Create subplot


fig, ax = plt.subplots()

# Define Data

x = np.linspace(0, 5 * np.pi, 150)
y = np.tan(x)

# Plot

ax.plot(x, y)

# Set ticklabels


ax.set_xticks([0, np.pi, 2 * np.pi, 3 * np.pi, 4 * np.pi, 5 * np.pi])


ax.set_xticklabels(['0', r'$\pi$', r'2$\pi$', r'3$\pi$', r'4$\pi$', r'5$\pi$'], horizontalalignment='right')

# Add fig title

fig.suptitle('set_xticklabels horizontalalignment Example', fontweight='bold')

# Display

plt.show()

Here we set the horizontalalignment of the x ticklabels to right.

matplotlib set_xticklabels with horizontalalignment
ha=’right’

horizontalalignment=’left’

# Import Library

import numpy as np
import matplotlib.pyplot as plt

# Create subplot


fig, ax = plt.subplots()

# Define Data

x = np.linspace(0, 5 * np.pi, 150)
y = np.tan(x)

# Plot

ax.plot(x, y)

# Set ticklabels

ax.set_xticks([0, np.pi, 2 * np.pi, 3 * np.pi, 4 * np.pi, 5 * np.pi])

ax.set_xticklabels(['0', r'$\pi$', r'2$\pi$', r'3$\pi$', r'4$\pi$', r'5$\pi$'], horizontalalignment='left')

# Add fig title

fig.suptitle('set_xticklabels horizontalalignment Example', fontweight='bold')

# Display

plt.show()
matplotlib set_xticklabels ha
ha=’left’

Matplotlib set_xticklabels rotation

Here we’ll learn to rotate the x-axis ticklabels. To change the angle of rotation pass rotation argument to set_xtciklabels() method. We can use it to avoid overlapping labels at the x-axis.

The following is the syntax:

matplotlib.axes.Axes.set_xticklabels(labels, rotation=None)

Let’s see an example:

# Import Library

import numpy as np
import matplotlib.pyplot as plt

# Create subplot

fig, ax = plt.subplots()

# Define Data

x = np.linspace(0, 5 * np.pi, 150)
y1 = np.exp(x)

# Plot

ax.plot(x, y1)

# Set ticklabels

ax.set_xticks([0, np.pi, 2 * np.pi, 3 * np.pi, 4 * np.pi, 5 * np.pi])

ax.set_xticklabels(['0', r'$\pi$', r'2$\pi$', r'3$\pi$', r'4$\pi$', r'5$\pi$'], rotation=30)

# Add fig title

fig.suptitle('set_xticklabels rotation Example', fontweight='bold')

# Display


plt.show()
  • In the above example, to define the data coordinates we use the linespace(), and exp() method. And to plot a graph, use the plot() method of matplotlib.
  • To rotate the ticklabels here we use the set_xticklabels() function with rotation argument.
matplotlib set_xticklabels rotation
set_xticklabels(rotation=30)

Matplotlib set_xticklabels hide

Here we’ll learn how to hide ticklabels at the x-axis. Here we set the ticks labels to be empty so that it makes the axis ticks or tick labels invisible. But the ticks remain.

The following is the syntax:

matplotlib.axes.Axes.set_xticklabels([])

Let’s see an example:

# Import Library

import numpy as np
import matplotlib.pyplot as plt

# Create subplot


fig, ax = plt.subplots()

# Define Data


x = np.linspace(0, 5 * np.pi, 150)
y = np.exp(x)

# Plot

ax.plot(x, y)

# Set ticklabels

ax.set_xticks([0, np.pi, 2 * np.pi, 3 * np.pi, 4 * np.pi, 5 * np.pi])

ax.set_xticklabels([])

# Add fig title

fig.suptitle('set_xticklabels invisible Example', fontweight='bold')

# Display

plt.show()

Here we pass the blank list to the set_xtciklabels() method so that labels get invisible.

matplotlib set_xticklabels hide

Matplotlib set_xticklabels alignment

Here we’ll learn to change the alignment of the x-axis ticklabels. To change the alignment pass rotation as an argument to set_xticklabels method and set’s its value to vertical and horizontal.

The following is the syntax:

matplotlib.axes.Axes.set_xticklabels(label, rotation='vertical' | 'horizontal')

Examples:

# Import Library

import numpy as np
import matplotlib.pyplot as plt

# Create subplot

fig, ax = plt.subplots()

# Define Data

x = np.linspace(0, 5 * np.pi, 150)
y1 = np.cos(x)
y2 = np.sin(x)

# Plot


ax.plot(x, y1)
ax.plot(x, y2)

# Set ticklabels

ax.set_xticks([0, np.pi, 2 * np.pi, 3 * np.pi, 4 * np.pi, 5 * np.pi])

ax.set_xticklabels(['0', r'$\pi$', r'2$\pi$', r'3$\pi$', r'4$\pi$', r'5$\pi$'], rotation='vertical')

                         #OR

ax.set_xticklabels(['0', r'$\pi$', r'2$\pi$', r'3$\pi$', r'4$\pi$', r'5$\pi$'], rotation='horizontal')

# Add fig title


fig.suptitle('set_xticklabels alignment Example', fontweight='bold')

# Display

plt.show()

In the above example, we pass the rotation argument to the set_xticklabels() method and we set its value vertical and horizontal, to align the labels at the x-axis.

matplotlib set_xticklabels alignemnt
alignment=’vertical’
matplotlib set_xticklabels having alignment
alignment=’horizontal’

Matplotlib set_xticklabels minor

Here we’ll learn how to set the minor ticklabels rather than the major ones at the x-axis.

The following is the syntax:

matplotlib.axes.Axes.set_xticklabels(labels, minor=True)

Example:

# Import Library


import numpy as np
import matplotlib.pyplot as plt

# Create subplot


fig, ax = plt.subplots()

# Define Data

x = np.linspace(0, 3 * np.pi, 150)
y1 = np.cos(x)
y2 = np.sin(x)

# Plot

ax.plot(x, y1)
ax.plot(x, y2)

# Set ticklabels


ax.set_xticks([0, np.pi, 2* np.pi, 3 * np.pi], minor=True)

ax.set_xticklabels(['0', r'$\pi$', r'2$\pi$', r'3$\pi$'], minor=True, fontsize=15, color='red')

# Add fig title

fig.suptitle('set_xticklabels minor ticks Example', fontweight='bold')

# Display

plt.show()

In the above example, we pass minor as an argument to both the method set_xticks and set_xticklabels to set the minor ticklabels and ticks.

matplotlib set_xticklabels minor
set_xticklabels(minor=True)

Matplotlib boxplot set_xticklabels

We’ll learn how to draw a boxplot and set the text labels at the x-axis.

The following is the syntax:

matplotlib.axes.Axes.set_xticklabels(labels)

Example:

# Import Library

import numpy as np
import matplotlib.pyplot as plt

# Subplot


fig, ax = plt.subplots()

# Define Data Coordinates

xticks = [2, 4, 6, 8, 10]

# Plot

plt.boxplot(xticks)

# Ticklabels

ax.set_xticks(xticks)

ax.set_xticklabels(['Mon' , 'Tue' , 'Wed', 'Thur', 'Fri' ])

# Display

plt.show()
  • In the above example, we import matplotlib.pyplot, and numpy.
  • Then we create a subplot using subplots() method.
  • After this, we plot the boxplot using the boxplot() method.
  • To set the ticks and ticklabels, use the set_xticks and set_xticklabels method.
matplotlib boxplot set_xticklabels

You may like the following Python Matplotlib tutorials:

In this tutorial, we learned:

  • Matplotlib set_xticklabels
  • Matplorlib set_xticklabels fontdict
  • Matplotlib set_xticklabels fontsize
  • Matplotlib set_xticklabels font
  • Matplotib set_xticklabels color
  • Matplotlib set_xticklabels vertical
  • Matplotlib set_xticklabels horizontal alignment
  • Matplotlib set_xticklabels rotation
  • Matplotlib set_xticklabels hide
  • Matplotlib set_xticklabels alignment
  • Matplotlib set_xticklabels minor
  • Matplotlib boxplot set_xticklabels
